Thursday, 31 January 2013

Samsung Galaxy Ace Plus S7500 / S7500L Root + CWM

  1. Download CWM Recovery.7z from attachments. Extract Recovery.tar
  2. Download Superuser-3.1.3-arm-signed.7z (or newer from Extract and copy it to your SD card (internal or external).
  3. Put your phone in Download mode. Flash Recovery.tar using Odin.
  4. Put your phone in Recovery mode. Flash from recovery
  5. Reboot and ready

1 =  odin3 v1.87.7

2 = recovery 7z

3 = super user 3.1.3 arn sighned

Wednesday, 23 January 2013

samsung wave 525 s5253 freeze solution

Put the phone on the download mode by....
Holding (volume down,camera,call,and power on)
Connect cable then install usb driver.
set com port..

download odin downloader
flash file

Tuesday, 15 January 2013

sony ericsson p1i hard reset

How do you master reset to sony ericsson p1i but do not code?

To bypass any locks and manually reset the Sony Ericsson P1i -

Jog Dial UP
Jog Dial DOWN
Jog Dial DOWN
Jog Dial DOWN

Explanation: With the phone on, move the side/jog dial upwards once , then press *, move jog dial down twice and press * again, move jog dial downwards and press *

You will then see "Service Menus" and can choose either "Service Information" "Service Tests" or "Format Internal Disk"

Formatting the Internal Disk will reset the phone to factory default - erasing any data and programs in the process. Enjoy - and breathe deeply.

Friday, 11 January 2013

unlock your phone online

website = sim unlock .net

How To Unlock Samsung Galaxy S3 i9305 Phone In or Using Z3X

How To Unlock Samsung Galaxy S3 i9305 Phone In or Using Z3X

If You Have A Samsung Galaxy S3 i9305 Locked Phone. Then You Can Unlock If Using Your Z3X Tool (If Have!!!).

It's So Easy To Do It...

1st Method (If You Have Not Update Samsung Tool Software),
1st type *#7284# on the phone and select UART->MODEM, USB ->PDA Then tap "Save and Reset"
2nd type *#9090# on the phone and select DM over UART then power off the phone.
Connect the phone to uart RH-45 cable and power on the phone
3rd with Z3X Samsung Tool chose T-989 model and press Unlock button.
Then Your Phone Unlock Done!!!!!!!!!!!!!!

2nd Method (If You Have Latest Z3X Samsung Tool Software)

1st press *#7284# make sure u choose PDA both uart and usb then press Qualcomm USB settings choose DM+MODEM+ADB then press ok wait till drivers install.
2nd use USB cable and run Samsung Tool V13.3 or Any Update, then choose i9305 model and correct Com Port And press unlock
Reading phone info...
Build: M9615ACEHWMAZD1795
Reading security... OK
Calculating... OK
Writing security... OK
Unlock done

Wednesday, 9 January 2013

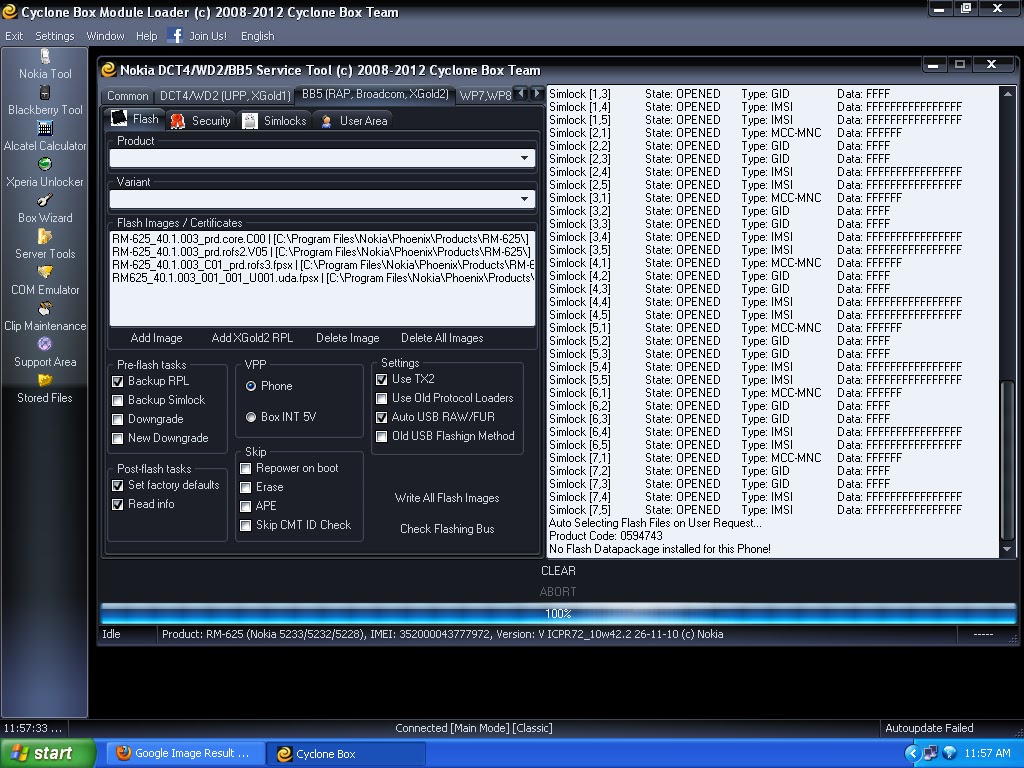

nokia 5233 flashing with cyclone box

file select like this

mcu + cor = RM-625_40.1.003_prd.core.C00

ppm + ppm = RM-625_40.1.003_prd.rofs2.V05

cnt + uda = RM625_40.1.003_001_001_U001.uda.fpsx

cnt + cos = RM-625_40.1.003_C01_prd.rofs3.fpsx

or see image

nokia 5233 flashing with cyclone box

file select like this

mcu + cor = RM-625_40.1.003_prd.core.C00

ppm + ppm = RM-625_40.1.003_prd.rofs2.V05

cnt + uda = RM625_40.1.003_001_001_U001.uda.fpsx

cnt + cos = RM-625_40.1.003_C01_prd.rofs3.fpsx

or see image

Tuesday, 8 January 2013

how to find compnents on mobile board

How to Find Component Parts on PCB Board?

A certain components parts is easy to find with an aide of schematic diagrams. In Nokia Phones finding it was been so easy for they provide a complete and accurate component data on their Schematic Diagrams. While other various mobile phone don't have. Some cellphone technicians find it hard to fix some of mobile phone products for they don't provide schematic diagrams to be available, but many experts and masters can do the job even without schematic diagrams. Experts can rely on their deep knowledge on electronics components and circuits, many of them where electronic engineers and also many of them where professionally skilled by experience and mastered for years. You can be one of them if you follow their instinct but before that they all started from scratch.We are all start from scratch.

Now, let's take up a very simple method on how to find certain electronic component's location  where it is being mounted on a particular PCB Board layouts.

Here's an example of Nokia N70 schematic diagram, Download it here if you haven't a copy yet, and make sure you have Adobe Reader installed on your computer to be able to open it.
If you already  have a copy of this schematic diagram,  open it and scroll it down to the bottom page.
In the bottom page which is the last page you may found this

adobe reader download here =  download

 On the right side you may find the table of components which is listed in codes like for example, Resistors starts with letter "R" then "mounting code" . next to it on the left is the " pattern codes" which is means the spot point which is scaled by letters and numbers on the PC Board,

On the right side of the page is the layout of all of components with respective
codes mark on it. Each component mounted in horizontal and vertical positions.

 In both sides on the PCB layout is being scaled by letters and numbers, this is were the pattern codes from the first picture above being produce by combining the letter and number to make the mapping spot point.
spot point of where these letter and number meets across each other, is the exact location where that certain component is being mounted.

 Now let's take a little bit exercise on how to use this methods..
Okay, assuming that we are looking for a certain components on a PCB board.
Let say that we are going to find the 2n2 valued capacitor on RF Section for that phone is having a problem of network signal.

now scroll up the page to RF Section which is on page 9 and find these two 2n2 (2.2nanofarad) valued capacitor
see guide picture below;  Just remember and get the Mounting Code for it is the code were going to use as a guide to to the component finder table of components.

Then after finding it scroll back to the Component Finder page Table of components, then find it on the lists of the components codes like "C7524 is on B9" and "C7573 is on A6"
 the next thing again you have to do is to remember and get that code then proceed to the Component Layouts. and scale the spot point of  "letter B and 9" then letter "A and 6" on the scaled on the opposite sides. See picture below

The last part is to scroll it up on the whole component layout on the upper page 10 or on your PC board then spot and mark that component where it is being mounted.

 re you go you just found it! congratulation!
Practice it more often,so that you can be familiarize on each component or parts for that certain product. The more often you do it, the more chances you will mastered it. sooner,you can work it alone without even using the schematic diagram anymore

Sunday, 6 January 2013

iphone 4s jailbreak

whats is jailbreak

ailbreak is a process that allows iPhone 4S users (also iPod Touch, iPad and other iPhone versions) to have access to root operating system, namely iOS, raising any restriction implemented by Apple on that device. In addition, it allows the installation of third-party applications (app), applications that were not supported by Apple for one reason or another in the App Store, through software like Cydia, Installous or Rock.
Do not confuse jailbreak with unlock (unlock the device from a certain network to use any carier). Jailbreak without unlock possible, not vice versa!

why people jailbreak their iphone

 No restrictions! The main reason was to be able to use your iPhone 4S on any network not only in those who have made partnership with Apple. For this needs to be done unlock that would not have worked without being able to access the root of the device operating system.
Another reason is to be able to install applications rejected by Apple from certain causes, and to install applications that are fully customize to your preferences.
Another thing possible due to a free jailbreak is some quite expensive software installation for FREE.

advantages and disatages

The benefits are obvious. A jailbroken iPhone 4S is able to provide much more functionality than the standard one. Here are some of the jailbreak benefits:
  • The ability to unlock the network;
  • The possibility of modifying the system files;
  • The ability to install applications rejected by Apple and other applications developed by third-party companies via Cydia;
  • Able to install any software for free;
  • Possible customization for a device that have installed previous versions of iOS;
  • Bluetooth transfer between iPhone 4S and other devices (iPhone, iPod, PC, ... any device that has Bluetooth)
Disadvantages are little. A free jailbreak process is completely reversible by a simple restore in iTunes. The only real disadvantage can occur when you jailbreak your iPhone 4S, the process crashes and sometimes you are forced to resume it or do a restore.
  • The possibility of losing the warranty. However, by a simple restore process in iTunes, bring the phone to its original shape;
  • Impairing the functionality, for many applications installed on Cydia. Applies when you abuse the installing software;

its possible without jailbreak

 Cydia founder, Jay Freeman, said that more than 10% of the iPhones are jailbroken. So, YES, considering that almost 90% of iPhones have not used this opportunity.
If you have the money to purchase all the interesting application, you do not mind the network in which is locked your iPhone and want to update iOS as soon as it appears, do not need and really do not have to use a free jailbreak on your device.

it's legal

 Yes! There have been attempts in the U.S. for this process to be outlawed but the trial court has given the verdict that the jailbreak process is perfectly legal as long as you do not use code owned by someone else.
All one needs to do first is to do is find a reputable free jailbreak tool to handle the job. One must also check if the latest version of iTunes is running on your iPhone 4S. This must be properly in sync so that important files will be backed up easily

 If you’re interested in learning how to jailbreak iPhone 4S for free, here are some step-by-step guides that you can follow to make it possible:
 go to '''''''  website

how jailbreak iphone 4s running ios  5.1.1

download absinthe = download

how jail break iphone 4s running ios 5.1.1 step by step

Connect your iPhone 4S to the computer and open Absinthe. Now go to Settings> General> Reset and choose the option Reset all Content and Settings. According to Chronic Dev Team, the developers of Absinthe jailbreak tool, doing this you ensure that the jailbreak process will be quick and without problems.
[UPDATE] To avoid some issues when you jailbreak iPhone 4S running iOS 5.1.1 it is absolutely necessary to make full a restore from iTunes. Erase all Content and Settings is not sufficient and will result in the error Recovery completed .... After making full restore DO NOT SET your iPhone 4S, just simply activated (ie, have network), then close iTunes and open Absinthe;

Press the Jailbreak button and wait a few minutes
 After about 5 minutes, the free jailbreak process should be completed and have an untethered jailbroken iPhone 4S running iOS 5.1.1. Now you can restore the backup done earlier to recover your data;

how jailbreqak iphone 4s running ios  5.0.1

download latest redsnow from here = download

This free jailbreak solution only applies to iPhone 4S running iOS 5.0.1, the procedure being different from the rest of Apple device. A few weeks ago Dev Team have released a new version of redsn0w tool that makes untethered jailbreak on iPhone 4S terminal, basically updating the software exploits from Absinthe.
Before that, redsn0w worked for any device beside iPhone 4S, but now is possible to use it even for this task. Here’s how to jailbreak iPhone 4S running iOS 5.0.1 on Windows and Mac:

 Connect your iPhone 4S to the computer and open redsn0w;

 Press the button Jailbreak and redsn0w will begin to implement the exploit;

On the terminal will be displayed the installation menu of a profile, install that profile, do not enter any password just click the Next button at the top right and finally click the Done button;

After redsn0w will display the above message go to Settings>General>Network>VPN and set the VPN to ON.
Note: It is possible that after the setting to receive an error. Click OK and once again set the VPN to ON.
Now redsn0w will implement the jailbreak, therefore it is possible that the error to reappear. In this case set the VPN to ON for the third time and the screen should go black, after that the jailbreak should be implemented.
Done! This is how to jailbreak iPhone 4S running iOS 5.0.1 using redsn0w.
